The Response Time Dashboard displays the network and application response time data for the slowest targets on your network based on response time for the last 20 minutes. Use the graph to view response time data for a variety of filters, including application, device family, and username.
Additionally, you can use the dashboard to select the number of targets for which the response time is displayed and you can filter the information based on certain criteria and view flow data specific to the data you select.
To access the Response Time Dashboard, open the Analytics > Dashboard tab and select Response Time in the dashboard drop-down list.
Overview

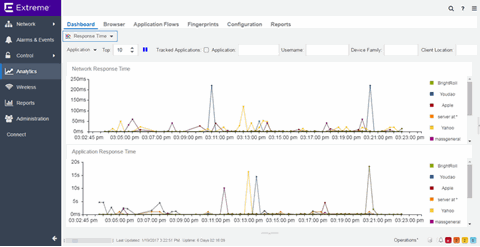

The Response Time Dashboard contains two graphs, one displays the network response time and the other displays the application response time. Data is updated every 15 seconds and displays data over the last 20 minutes.
If you have multiple ExtremeAnalytics engines, use the Engine drop-down list to select an engine to use as the source for the report data.
Use the toolbar at the top of the window to display data based on criteria you select and updates the two graphs.
Application

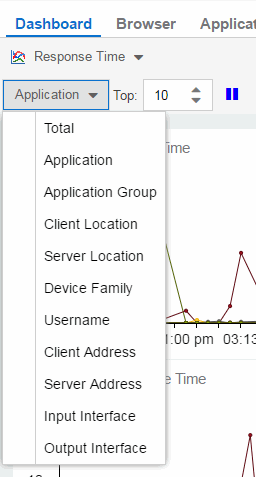

Use the Application drop-down list to group the data in the Response Time Dashboard by the following criteria:
Top
Use the Top field to limit the results in the graphs to display only the top results based on the number you enter.
For example, you can configure the graphs to display the top 3 slowest applications by response time.
Tracked Applications
Select the Tracked Applications box to add response time results for tracked applications to the Network Response Time and Application Response Time graphs.
Filters
You can also use the filter options at the top of the window to search for specific criteria. Using these fields limits the data to Tracked Applications, Application, Username, Device Family, Client Site, and Server Site. Entering a value in one of these fields filters the results displayed in the graphs below. Clear the data by selecting the Clear (
) button to the right of the filter options.
Network Response Time Graph

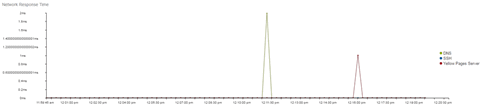

The Network Response Time graph displays the response time (in milliseconds) the TCP request took to complete for the Top N slowest Targets. The data in this graph depends on the criteria you select in the toolbar at the top of the window and can be filtered to match specific criteria. ExtremeCloud IQ Site Engine displays data collected by the ExtremeAnalytics engine over the previous 20 minutes updated every 15 seconds. Use the Pause button in the toolbar to stop the graph from updating. Selecting the Unpause button resumes the updates and refreshes the graph with the most up-to-date data.
Hover over a point in the graph to see a pop-up with details about that application at that moment in time.
Selecting on a point opens a flow data table for that Target at that time at the bottom of the window, limited to match any filters you applied. Right-click a row in the flow to see additional options for working with that flow. Flows without an identified source are labeled with the device's IP Address.
Select the Arrow button (
) at the top of the flow data table to collapse the table and select the Arrow button (
) on the collapsed table to expand the table again.
Application Response Time Graph

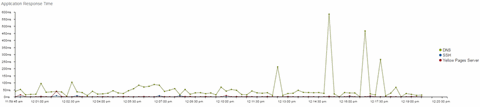

The Application Response Time graph displays the response time (in milliseconds) the application request took to complete for the Top N slowest Targets. The data in this graph depends on the criteria you select in the toolbar at the top of the window and can be filtered to match specific criteria. ExtremeCloud IQ Site Engine displays data collected by the ExtremeAnalytics engine over the previous 20 minutes updated every 15 seconds. Use the Pause button in the toolbar to stop the graph from updating. Selecting the Unpause button resumes the updates and refreshes the graph with the most up-to-date data.
Hover over a point in the graph to see a pop-up with details about that application at that moment in time.
Selecting on a point opens a flow data table for that Target at that time at the bottom of the window, limited to match any filters you applied. Right-click a row in the flow to see additional options for working with that flow.
Select the Arrow button () at the top of the flow data table to collapse the table and select the Arrow button () on the collapsed table to expand the table again.
