Method: createVirtualAndPhysicalNetwork
Create a virtual and physical network configuration. This operation creates an ExtremeControl rule, profile, policy mapping, policy role, and VLANs for the ExtremeControl configuration and domain. Enforce configuration changes after executing the web service.
Parameters
Name | Type | Description |
---|---|---|
name | string | Name used for the ExtremeControl rule, profile, and policy mapping |
nacConfig | string | ExtremeControl configuration name |
domain | string | Domain name |
isPrivateVlan | boolean | Set to true if it is a private VLAN |
primaryVlanId | int | Primary VLAN ID |
secondaryVlanId | int | Secondary VLAN ID, only required if isPrivateVlan is set to true. Otherwise it can be set to -1 |
mode | string | VLAN type, available options are:
-promiscuous -isolated -community |
forwardAsTagged | boolean | Set to true for forwarding tagged packets |
Returns
Returns a string status describing whether the operation is successful.
Example

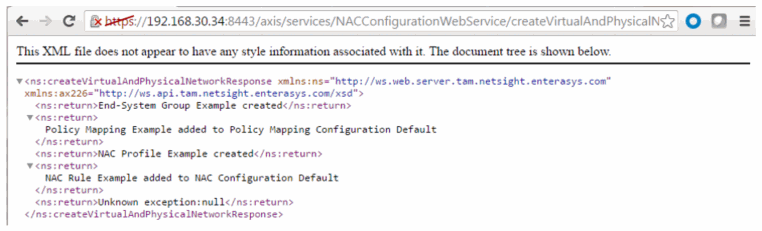

Execute the following web service with a browser:
https://192.168.30.34:8443/axis/services/NACConfigurationWebService/createVirtualAndPhysicalNetwork?name=Example&nacConfig=Default&domain=Default&isPrivateVlan=true&primaryVlanId=100&secondaryVlanId=200&mode=promiscuous&forwardAsTagged=true
