Method: getGoogleChartApiUrl

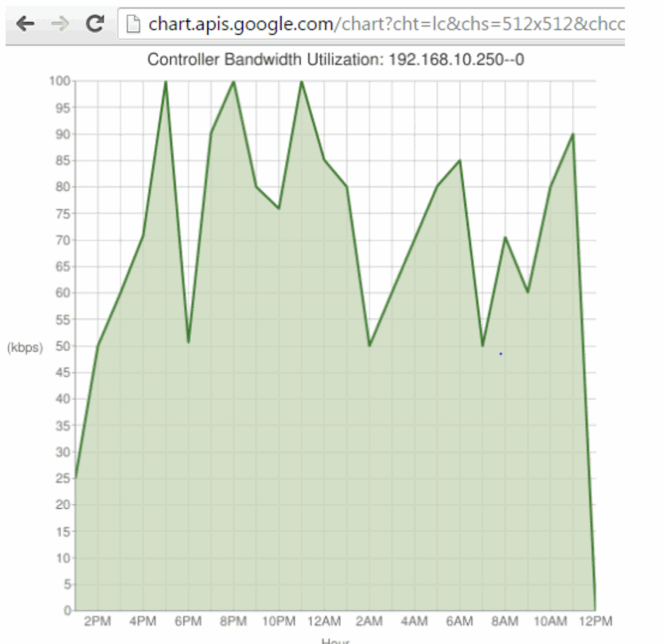

Generate an online chart using Google’s chart API. Collections must be enabled for the AP and/or wireless controller for this operation to work correctly.
Parameters
Name | Type | Description |
---|---|---|
type | string | Type of statistic, available options are:
APBwUtil – AP bandwidth ControllerBwUtil – wireless controller bandwidth |
params | string | Chart parameters in key=value format, available parameters are:
target – AP serial number for APBwUtil or wireless controller IP address for ControllerBwUtil width – chart width height – chart height |
Returns

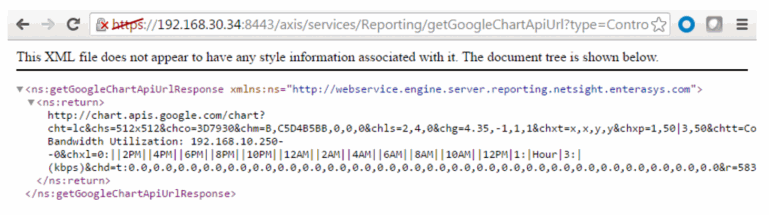

The values from the URL were modified in the example below.
