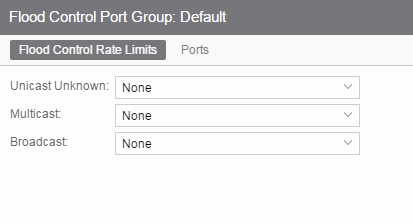

This tab allows you to set individual flood control rates for each traffic type (Unicast, Multicast, and Broadcast).
Choices include:
- None
- Rate limits created in the Rate Limit tab. For additional information, see Create Rate Limit/Shaper.
As flood control is enabled/disabled for a Class of Service, when enabled, each column displays a rate limit, or None, if no rate has been defined for that portion of flood control.
To access this tab, open the Class of Service > CoS Components left-panel tab. Then, select the Flood Control checkbox from the General tab in the left-panel to display the Flood Control Port Groups tab in the left panel. Expand the Flood Control Port Groups tab, and select a flood control port group in the tree. The Flood Control Port Groups tab is displayed in the right panel.
- Unicast Unknown
- Select a rate, create a new rate, or edit an existing flood control rate limit for Unicast traffic.
