Use the Configuration tab to view detailed information on the ExtremeAnalytics engines you configure. You can also use the tab to add and enforce your engines, and access engine reports and diagnostics. You must be a member of an authorization group assigned the ExtremeCloud IQ Site Engine ExtremeAnalytics Read/Write Access capability to view the Configuration tab.
Use the left panel in the Configuration view to access various engine administrative options and reports. This Help topic provides information on the following operations available in the left panel:
Engines
View engine status information, configure web credentials, and configure advanced options for an individual engine.
- Add
- Adds a new ExtremeAnalytics engine to ExtremeCloud IQ Site Engine.
- Delete
- Delete the selected engine.
- Enforce
- Enforce the selected engine.
- Enforce All
- Enforces all of the ExtremeAnalytics engines added to ExtremeCloud IQ Site Engine.
- Poll
- Poll the selected engine.
- Restart Collector
- Restarts the ExtremeAnalytics engine's collector process.
Status
Select an engine and expand the menu to select Status, where you can view engine status including flow collector, application sensor, CPU and memory, flow sources, and diagnostic information.
Configuration
Select an engine and expand the menu to select Configuration, where you can configure advanced options for the selected ExtremeAnalyticsengine:
- Set privacy levels.
- Add and enforce Engines.
- Enable ExtremeControl Integration.
- Add advanced configuration properties.
- Enable sensor modules and sensor module logging.
- Add or remove devices as Application Telemetry flow sources.
Virtual Sensors
Select to display the Virtual Sensors tab, which lists all of the available Virtual Machines on your network as well as those configured as Virtual Sensors.

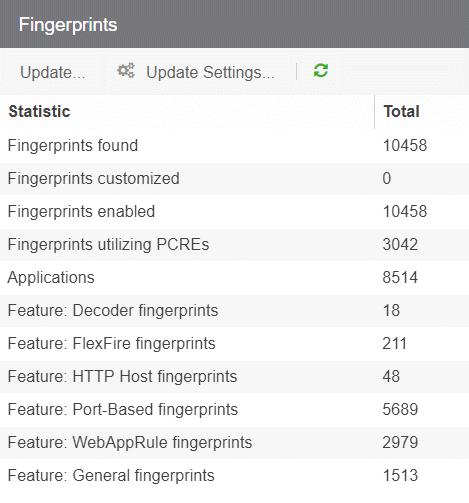

Fingerprints
View data for the application fingerprints in use.
Use the Menu icon (
) to access the following system fingerprint actions:
- Update
- Perform a manual one-time update of the fingerprint database.
- Update Settings
- Schedule fingerprint updates to be performed automatically on a daily or weekly basis.
Licenses
The Licenses window displays data for each license listed, including flow and end-system capacity totals. Select the Add button (
) to increase licensing capacity.
Status
View a collection of ExtremeAnalytics system statistics, including Disk Usage and Approximate Row Counts, as well as Device Families and Profiles.

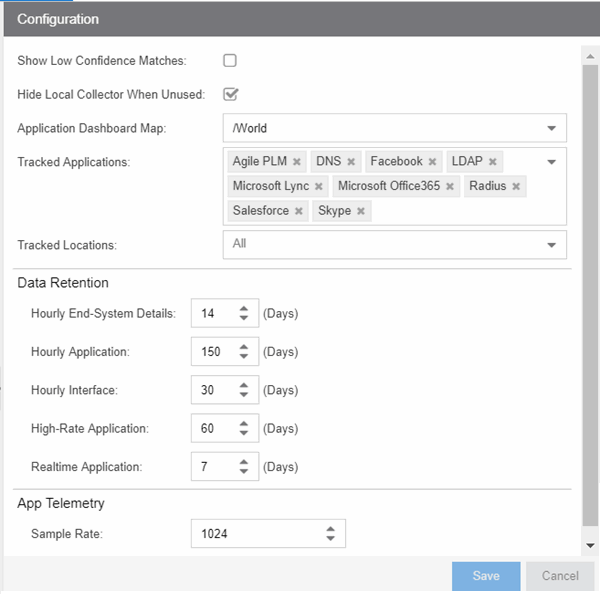

Configuration
Use the Configuration window to configure the application information displayed in the ExtremeAnalytics tab.
- Show Low Confidence Matches
- Check the box to display flows for which ExtremeCloud IQ Site Engine has low confidence.
- Hide Local Collector When Unused
- Check the box to hide local collector information when not in use.
- Application Dashboard Map
- Select from the drop-down list the map from which to draw application dashboard data.
- Tracked Applications
- Select the applications to track in the ExtremeAnalytics tab.
- Tracked Sites
- Select the sites to track on the ExtremeAnalytics tab. Tracked sites are also indicated on the Network > Devices > Sites > Endpoint Locations tab in the right panel.
- Dynamic Thresholding
- Use the Dynamic Thresholding section of the window to indicate whether to enable dynamic threshold functionality for the Network Service and Tracked Applications dashboards.
When this functionality is enabled, the expected range for application response time is calculated based on past observed response times and a dynamic threshold is assigned. An alarm occurs when any network service or tracked application has a response time measured above its dynamic threshold.
The sliders enable you to adjust the sensitivity of the dynamic threshold by increasing or decreasing the size of the expected response time range. Selecting a lower sensitivity means more time is required for an alarm to occur. Alarms are displayed on the Alarms & Events > Alarms tab.
- Data Retention
- Use this section of the tab to configure the amount of time ExtremeCloud IQ Site Engine saves flow data.
- App Telemetry
- This section enables you to configure the default sample rate ExtremeAnalytics uses when configuring ExtremeXOS/Switch Engine devices on which Application Telemetry is enabled.
